| Line Size | DN25 to DN600 (1-in to 24-in) |
| Fluid Type | Liquid |
| Linearity (standard) | 1-in to 2.5-in: ±0.25%; 3-in to 24-in: ±0.15%
*Note: Please note that repeatability of Turbine Meters can only be demonstrated under specific calibration conditions which involve the uncertainty of the laboratory. For specific details, please contact your Daniel local representative. |
| Repeatability | ±0.02% |
| Process Temperature Range (standard) | • Carbon Steel: -29°C to +60°C (-20°F to +140°F) • Stainless Steel: -40°C to +60°C (-40°F to +140°F) |
| Operating Pressure Range | Carbon steel and stainless steel |
| Electronics | 2 pickoff coils and Dual-Channel Preamplifier (standard); additional Preamplifier models available to meet application requirements |

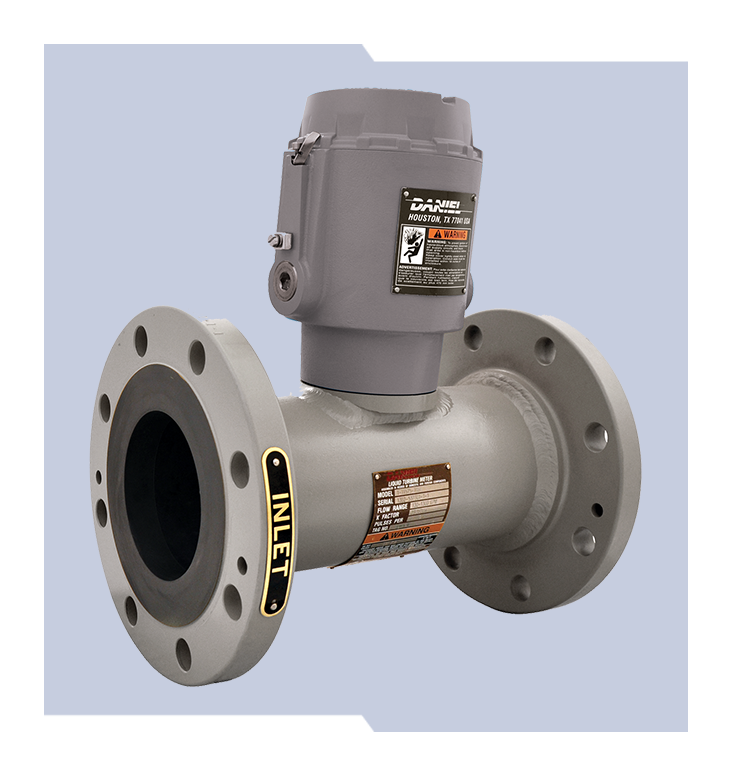

The Daniel Series 1500 Liquid Turbine Meter offers precision flow measurement for critical applications. At CRT Measurement Services, we are dedicated to providing our customers with the highest quality flow measurement equipment.
The 1500 Series Liquid Turbine Meter is simple to run with reliable parts that are built to last. Fluid flows through the meter, causing the turbine blades to rotate around an axis, creating angular velocity proportional to fluid velocity.
You can trust this liquid turbine meter to handle your applications due to the following features:
CRT Measurement Services provides integrated solutions and knowledgeable support to ensure your liquid turbine meter works properly. We can work together to increase your efficiency and reduce overall risks.
Our aftermarket support services include:
Optimize your liquid measurement accuracy with the Daniel Liquid Turbine Meter 1500 Series. Contact us online or call 832-632-8209 today to speak with our sales team and discover how our products can transform your company’s efficiency.
